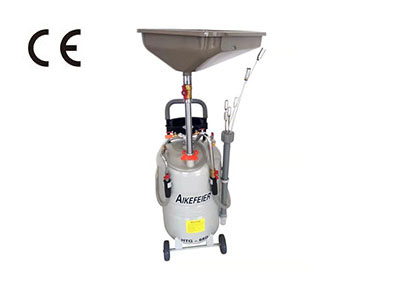

HTG-68D

HTG-68D(Without a measuring cup)

Air Pressure

7-9bar

Oil Discharge Pressure

0.6-0.8bar

Gas Consumption

150L/Min

Vacuum Degree

0-1bar

Oil Tank Capacity

70L

Tank Diameter

380mm

Tank Height

680mm

Tray Volume

20L

Tray Dimension

385mm×525mm

Tray Height Adjustment

1020-1600mm

Oil Temperature

40-90°

Sucker Needle

6pcs

Φ5×L750mm,(Cu,1PCS)

Collecting Speed：1.9L/Min

Φ6×L750mm,(Cu,1PCS)

Collecting Speed：3.2L/Min

Φ6×L750mm,(PVC,1PCS)

Collecting Speed：4.2L/Min

Φ6×L1000mm,(PVC,1PCS)

Collecting Speed：3.5L/Min

Φ5×L750mm,(PVC,1PCS)

Collecting Speed：2.1L/Min

Φ8×L900mm,(PVC,1PCS)

Collecting Speed：5.1L/Min

Suction Pipe Length

1.4m

Drain Pipe Length

1.5m

ToolBox

170mm×120mm

Fixed Wheel

Φ120×30mm

Drive Wheel

Φ75mm

Wheel Track

400mm

Applicable Medium

Liquid oil

Packaging

Complete Machine

Total Weight

23.5kg/25.6kg

Carton Size

440×470×940mm
