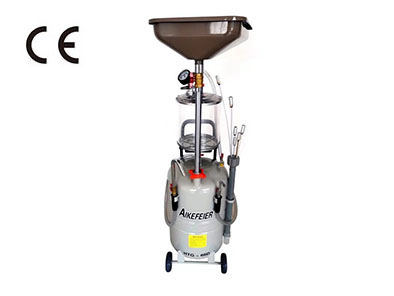

HTG-68D（with a measuring cup）

HTG-68D (With a measuring cup)

Air Pressure

7-9bar

Oil Discharge Pressure

0.6-0.8bar

Gas Consumption

150L/Min

Vacuum Degree

0-1bar

Oil Tank Capacity

70L

Tank Diameter

380mm

Tank Height

680mm

Measuring Cup volume

10L

Tray Volume

20L

Tray Dimension

385mm×525mm

Tray Height Adjustment

1300-1600mm

Oil Temperature

40-60°

Sucker Needle

6pcs

Φ5×L750mm,(Cu,1PCS)

Collecting Speed：1.9L/Min

Φ6×L750mm,(Cu,1PCS)

Collecting Speed：3.2L/Min

Φ6×L750mm,(PVC,1PCS)

Collecting Speed：4.2L/Min

Φ6×L1000mm,(PVC,1PCS)

Collecting Speed：3.5L/Min

Φ5×L750mm,(PVC,1PCS)

Collecting Speed：2.1L/Min

Φ8×L900mm,(PVC,1PCS)

Collecting Speed：5.1L/Min

Suction Pipe Length

1.4m

Drain Pipe Length

1.5m

ToolBox

170mm×120mm

Fixed Wheel

Φ120×宽30mm

Drive Wheel

Φ75mm

Wheel Track

400mm

Applicable Medium

Engine oil（Do not absorb liquids other than oil）

Packaging

Tray with Measuring cup/Case，Tank/Case

Tray with Measuring Cup Weight（N.W./G.W.）

8kg/9.1kg

Tank Weight（N.W./G.W.）

19kg/21kg

Total Weight

27kg/30.1kg

Carton Size

410×290×540mm/430×490×770mm
